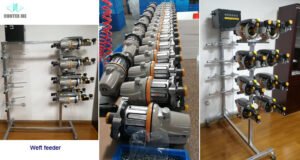

Weft Feeder for Jet Looms

Functions and features:

1. Weft feeding speed: up to 1800m/min.
2. Range of yarn counts: from 20 denier to 3.5Ne.
3. Yarn separation adjustable from 0.7 mm to 2.2 mm.
4. The weft feeder can be set for rotation S or Z depending on the yarn twist.
5. Coils detection by means of photocell.
6. Weft breakage detection by means of photocell to get the “loom stop” or “automatic weft changing” function.
7. Power consumption in working state is about 10W per lOOrpms.
8. Dimensions: length 323mm,width 186mm,height 225mm.
9. Weight:11kg.
